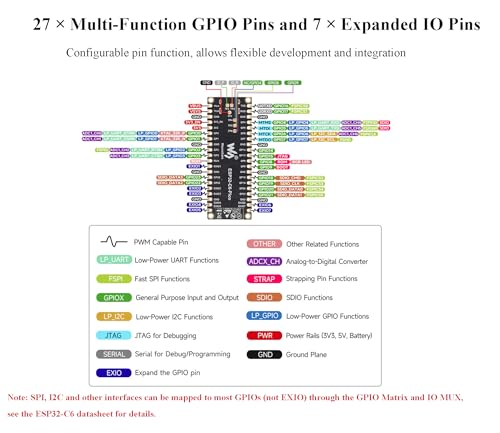

The ESP32-C6-Pico is an entry-level RISC-V microcontroller development board integrating WiFi 6, Bluetooth 5 and IEEE 802.15.4 (Zigbee 3.0 and Thread). Its Bluetooth Low Energy subsystem supports Bluetooth 5 (LE) and Bluetooth Mesh Adopts ESP32-C6-MINI-1 as the main chip, which is equipped with a RISC-V 32-bit single-core processor with 160MHz running frequency, Powerful AI Computing Capability & Reliable security features, suitable for AIoT applications, built-in 320KB ROM, 512KB HP SRAM, 16KB LP SRAM and 4MB flash Onboard MP28164 high efficiency DC-DC buck-boost chip with load current up to 2A, ensuring the safety of the product. Type-C connector, easier to use 20 × multi-function GPIO pins and 7 × expanded IO pins. Configurable pin function, allows flexible development and integration Rich peripheral interfaces, including full-speed USB OTG, SPI, I2C, UART, ADC, PWM, etc. to achieve various functions flexibly Supports most of the Raspberry Pi Pico expansion board ecology, suitable for artificial intelligence IoT application development Supports more Pico Extension Modules, such as Waveshare Pico-OLED-1.3, Pico-LCD-1.44,RS232 Module,etc.
